HCW Stainless Steel Full Height Turnstile with Programmable Control Power Off Unlocking and Durable Construction
| مكان المنشأ | شنتشن، الصين |
|---|---|
| اسم العلامة التجارية | Hongchuangwei |
| إصدار الشهادات | CE |
| رقم الموديل | CW804 |
| الحد الأدنى لكمية | 1 |
| الأسعار | قابل للتفاوض |
| تفاصيل التغليف | حالات الخشب |
| وقت التسليم | 7-15 يوم عمل |
| شروط الدفع | تي/تي |
| القدرة على العرض | 100 قطعة يوميا |
اتصل بي للحصول على عينات مجانية وكوبونات.
ال WhatsApp:0086 18588475571
ويتشات: 0086 18588475571
سكايب: sales10@aixton.com
إذا كان لديك أي قلق ، فنحن نقدم مساعدة عبر الإنترنت على مدار 24 ساعة.
xتفاصيل المنتج
| طلب | في الهواء الطلق والداخلية | مزود الطاقة | AC 220V/110V 10 ٪ 50/60MHz |
|---|---|---|---|
| التوطين النسبي | <95 ٪ ، لا تكثيف | وزن | 270 كجم |
| خدمة الحياة | ≥ 6 مليون مرة | اتجاه المرور | حركة المرور في اتجاه واحد أو في اتجاهين |
| طول السياج | 600 ملم | ||
| إبراز | Programmable Control Full Height Turnstile,Power Off Unlocking Security Gate,Durable Turnstile Gate,Power Off Unlocking Security Gate,Durable Turnstile Gate |
||
منتوج وصف
HCW Full Height Turnstile Stainless Steel Security Gate
Programmable One Way or Two Way Control with Power Off Unlocking
The HCW Full Height Turnstile is a durable, high-security stainless steel gate featuring programmable access control and fail-safe power-off unlocking. Designed for maximum security and reliability in demanding environments.
Key Features

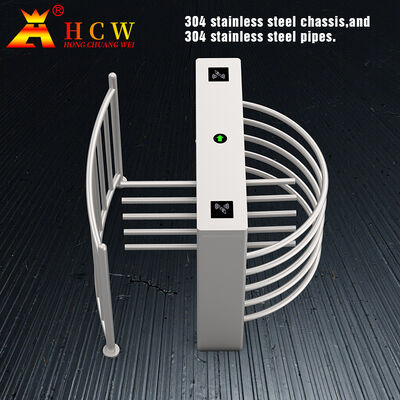

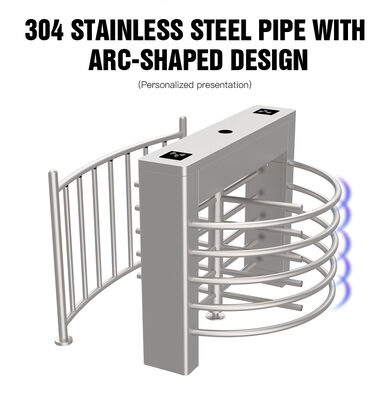

- Constructed with SUS304 stainless steel for superior durability and corrosion resistance
- Luxurious appearance with sturdy, long-lasting construction
- Customizable installation interface compatible with magnetic cards, barcodes, and ID card readers
- Smooth operation with soft buffering and low noise operation
- White heavy zinc acid electroplating for rust-proof protection
- Programmable control with multiple working modes (one-way or two-way)
- Power-off unlocking feature for emergency access
- Standard external electrical interface for easy system integration
- Sensitive impact detection for enhanced safety
- Designed for 10 million opening/closing cycles
- Automatic self-locking after passage
Applications
Ideal for railway stations, banks, high-end clubs, offices, gyms, swimming pools, and other secure areas. Supports RFID, fingerprint, and facial recognition systems. Can be integrated with infrared detectors and temperature controllers for various environments.
Technical Specifications
| Model | CW804 |
|---|---|
| Power Supply | AC220+10% 50HZ |
| Power Consumption | Static <50W, Dynamic <100W |
| Rotation Direction | One-way or two-way |
| Traffic Direction | One-way or two-way |
| Communication Interface | 232, RS485 |
| Components | Standard case, 90° revolving door, control panel, movement, motor |

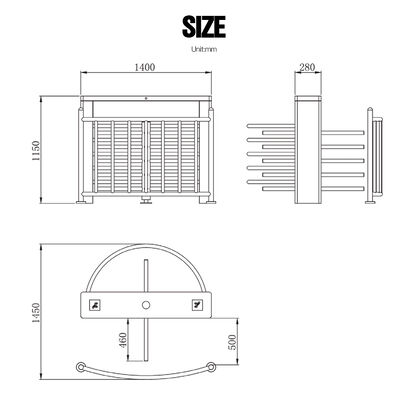

| Dimensions | 1400×1450×1150mm (Chassis: 1400×280×1150mm) |

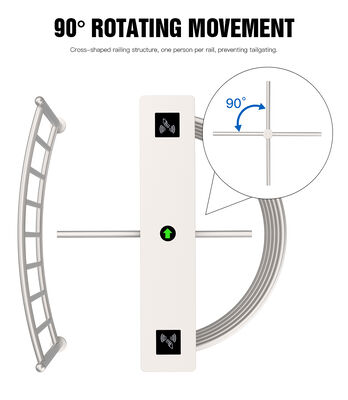

| Barrier Length | 600mm (90° barrier) |
| Swing | ≤600mm |
| Opening Time | Not adjustable |
| Capacity | 20 persons/minute |
| Operating Temperature | -25℃ to +70℃ (humidity ≤95%) |
| Auto Reset | Adjustable time limit for automatic locking |
Product Images
