Durable and Corrosion Resistant Barrier Turnstile Gate with One-Way or Two-Way Passage for Secure Access Control
| مكان المنشأ | شنتشن، الصين |
|---|---|
| اسم العلامة التجارية | Hongchuangwei |
| إصدار الشهادات | CE |
| رقم الموديل | CW602 |
| الحد الأدنى لكمية | 1 قطعة |
| الأسعار | قابل للتفاوض |
| تفاصيل التغليف | حالة خشبية |
| وقت التسليم | 7-15 يوم عمل |
| شروط الدفع | تي/تي |
| القدرة على العرض | 100 قطعة يوميا |
اتصل بي للحصول على عينات مجانية وكوبونات.
ال WhatsApp:0086 18588475571
ويتشات: 0086 18588475571
سكايب: sales10@aixton.com
إذا كان لديك أي قلق ، فنحن نقدم مساعدة عبر الإنترنت على مدار 24 ساعة.
xتفاصيل المنتج
| مادة الهيكل | 304 الفولاذ المقاوم للصدأ | سماكة | 1.2 ~ 1.5 ملم |
|---|---|---|---|
| اتجاه المرور | اتجاه واحد أو في اتجاهين | تصنيع المعدات الأصلية/تصنيع التصميم الشخصي | يدعم |
| إبراز | Durable Barrier Turnstile Gate,Corrosion Resistant Sliding Gate System,One-Way or Two-Way Access Control Gate,Corrosion Resistant Sliding Gate System,One-Way or Two-Way Access Control Gate |
||
منتوج وصف
CW602 Premium 304 Stainless Steel Sliding Gate System Solution
We understand that the safety and management of core passages are of utmost importance. The CW602 Sliding Gate carefully selects food-grade 304 stainless steel as its main material and integrates advanced sliding gate technology, providing a passage management solution that excels in safety, durability, environmental adaptability, and aesthetic design.
Thickened Stainless Steel Material for Eternal Durability
- 304 Stainless Steel Material: The entire body is made of 304 stainless steel with extremely strong corrosion resistance, rust resistance, and oxidation resistance. Resistant to moisture, acid rain, and cleaner corrosion.
- Easy to Clean and Maintain: Smooth surface without burrs, doesn't leave fingerprints, and can be cleaned with a simple wipe. Meets high hygiene standards for hospitals, food factories, and transportation hubs.
Ultimate Safety for Comprehensive Protection
- Stable and Controllable Operation: High-performance DC brushless motor ensures smooth, constant-speed movement without sudden impact, preventing pinching and collision.
- Multi-Dimensional Anti-Pinch Protection: 6 pairs of infrared sensors form a protective area that stops or rebounds the gate immediately when encountering obstacles.
- Intelligent Anti-Tailgating and Alarm: Accurately detects illegal entry and tailgating behaviors, triggers real-time alarms, and uploads information to the management platform.
Efficient Passage with Stability and Reliability
- Rapid Response Mechanism: Gate opening time controlled within 0.5-1 second, with passage efficiency of 35-40 people per minute.
- Ultra-Long Service Life: Industrial-grade design with core components rated for over 5 million trouble-free operations, supporting 24/7 use.
- Emergency Fire Linkage: Supports fire-fighting signals, automatically unlocking and fully opening in emergencies to ensure safety.
Intelligent Integration and Aesthetic Design

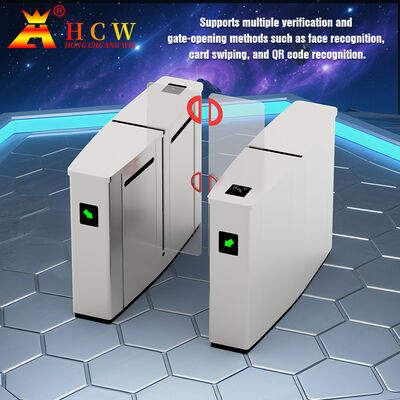

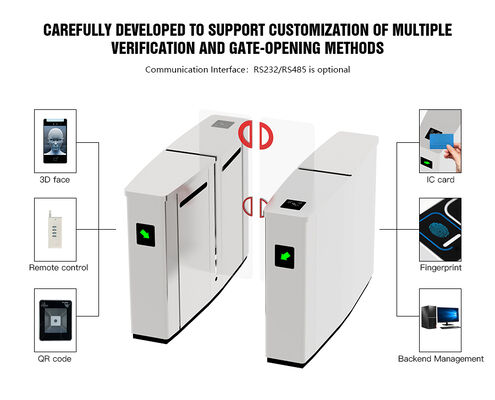

- Strong Expandability: Integrates with facial recognition, card swiping, QR code scanning, and fingerprint recognition. Standard communication interfaces (RS485/232) for easy connection to management software.
- Modern Minimalist Aesthetics: Streamlined design with stainless steel's original metal color, suitable for high-end office buildings, airports, and government buildings.
Typical Application Scenarios
- High-End Venues: Corporate headquarters lobbies, government agencies, financial institutions, star-rated hotels
- High-Frequency Scenarios: Subway stations, airports, ticket checkpoints of high-speed railway stations
- Harsh Environments: Hospitals, laboratories, food factories, chemical plants (requiring high corrosion resistance)
- General Needs: Smart industrial parks, office buildings, libraries, venues
Technical Specifications
| Product Number | CW602 |
|---|---|
| Voltage | AC220V±10%, 50HZ±10% HZ |
| Working Temperature | -30℃ to 70℃ |
| Relative Humidity | 5% to 90% |
| Motor Type | Brushless DC 24V |
| Direction of Passage | One-way or two-way |
| Input Control Signal | Switch quantity (standard configuration does not include RS232, 485) |
| Running Speed | 30-40 people/minute |
| Infrared Beam | 6 pairs |
| Number of Trouble-Free Runs | 3 million times |
| Average Life Span | 4 million times |
| Channel Width | 550mm |
| Swing Arm Material | 10mm acrylic door panel |

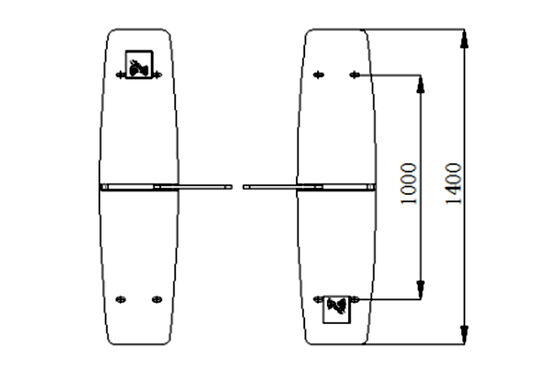

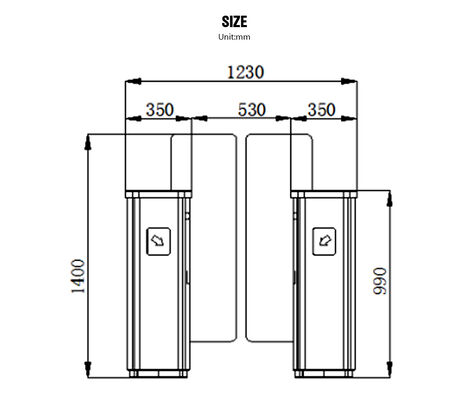

| Product Size | 1400*350*990mm |

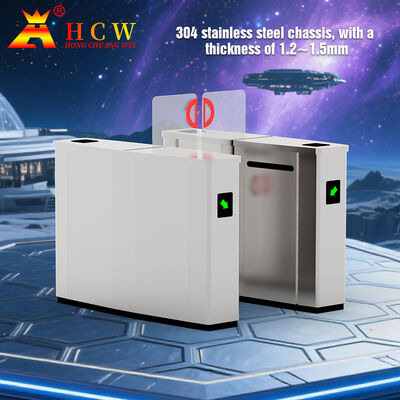

| Channel Frame | 1.2~1.5 thick 304 stainless steel |
| Package Weight | About 70 KG (single side road) |
