HCW CW406 Swing Barrier Turnstile Gate With 8 Pairs Infrared Detection Sensors Fast Speed 30-60 Person/Minute And 5 Million Times Life Span
| Place of Origin | Shenzhen,China |
|---|---|
| اسم العلامة التجارية | Hongchuangwei |
| إصدار الشهادات | CE/ISO 9001 |
| Model Number | CW406 |
| Minimum Order Quantity | 2 pieces |
| الأسعار | قابل للتفاوض |
| Packaging Details | wooden case |
| Delivery Time | 5-8 working days |
| Payment Terms | T/T |
| Supply Ability | 100 pieces per day |
اتصل بي للحصول على عينات مجانية وكوبونات.
ال WhatsApp:0086 18588475571
ويتشات: 0086 18588475571
سكايب: sales10@aixton.com
إذا كان لديك أي قلق ، فنحن نقدم مساعدة عبر الإنترنت على مدار 24 ساعة.
xتفاصيل المنتج
| Name | Swing turnstile gate | Cabinet material | 304 stainless steel |
|---|---|---|---|

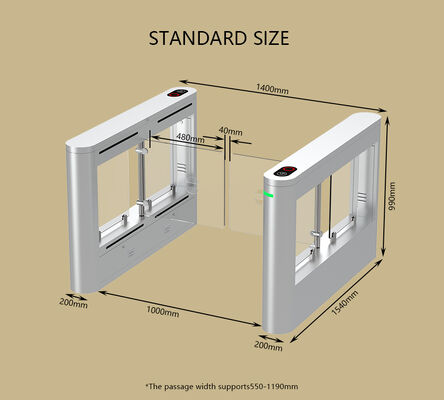

| Door wing material | Acrylic | Product Size | 1540*200*990 mm |
| Motor | Brushless Motor | Input control signal | Swtich value、RS232 |
| Running speed | 30~60 Person/minute | Life span | 5 million times |
| إبراز | 8 Pairs Infrared Detection Sensors Swing Barrier Turnstile Gate,Fast Speed 30-60 Person/Minute Pedestrian Access Control Turnstile,5 Million Times Life Span Swing Turnstile Gate,Fast Speed 30-60 Person/Minute Pedestrian Access Control Turnstile,5 Million Times Life Span Swing Turnstile Gate |
||
منتوج وصف
HCW CW406 Swing Barrier Turnstile Gate With SS304 Stainless Steel Cabinet
The CW406 swing gate turnstile is a high-end anti-collision solution for pedestrian access control, featuring a 60W brushless motor and 8 pairs of infrared detection sensors for efficient anti-tailgating protection. The system automatically locks when unauthorized access is attempted, withstanding impacts up to 120Nm, while meeting fire safety requirements with automatic power-off release.
Key Features
- Constructed with durable 304 stainless steel cabinet and standard acrylic swing arm

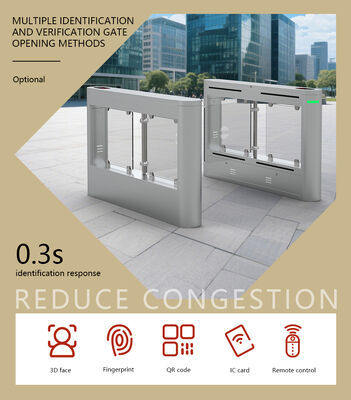

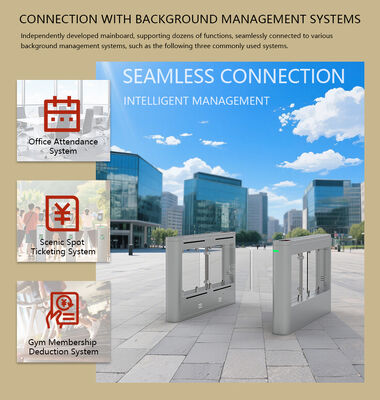

- Supports multiple access control systems including card readers, biometrics, QR codes, and facial recognition

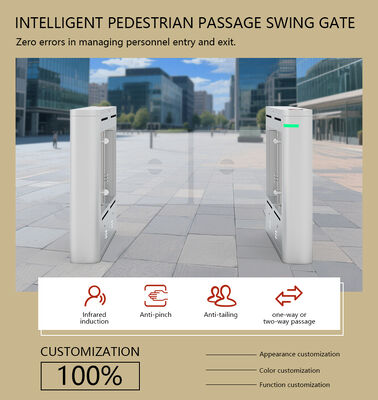

- Advanced anti-tailgating technology with 8 infrared sensors
- Automatic locking mechanism withstands 120Nm impact force
- Fire safety compliant with automatic power-off release
- Flexible operation modes including always open/closed and bidirectional passage
- Comprehensive safety features including anti-pinch and anti-shock functions
- LED direction indicators and audible/visual alarms
- Remote management and offline operation capabilities
Technical Specifications
| Product Number | CW406 |
|---|---|
| Voltage | AC220V±10%, 50HZ±10% |
| Working Temperature | -25℃ to 70℃ |
| Motor Type | Brushless Motor (60W) |
| Throughput | 30-60 persons/minute |
| Infrared Sensors | 8 pairs |
| Channel Width | 600mm-1190mm |
| Construction | 1.0-1.3mm 304 stainless steel frame |
| Weight | Approx. 65kg (single lane) |
Applications
Ideal for high-traffic pedestrian control in shopping malls, office buildings, residential complexes, schools, and other locations requiring secure access management.

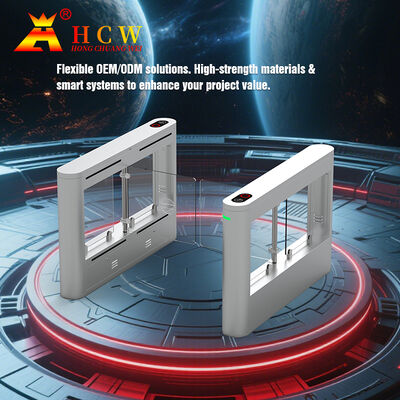

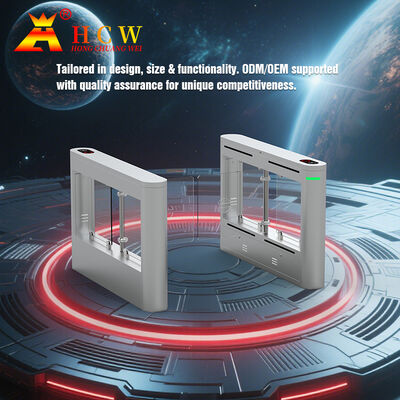

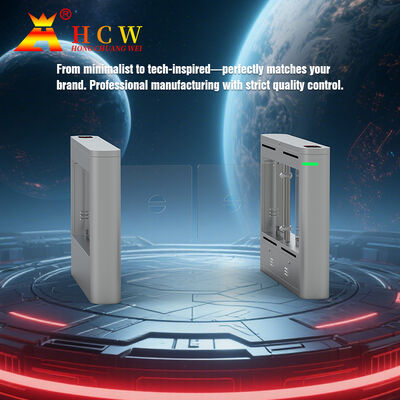

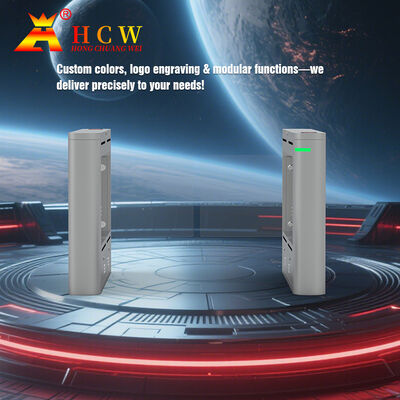

Product Images
