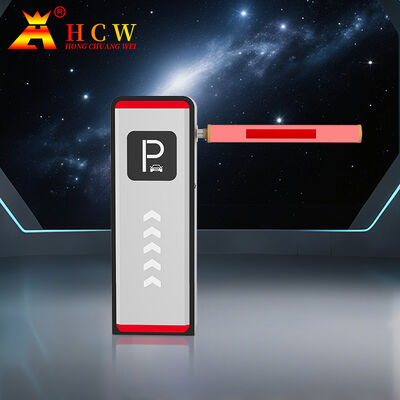

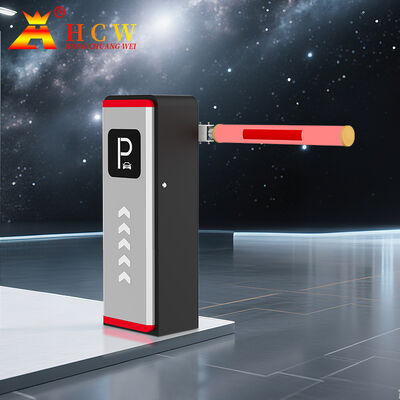

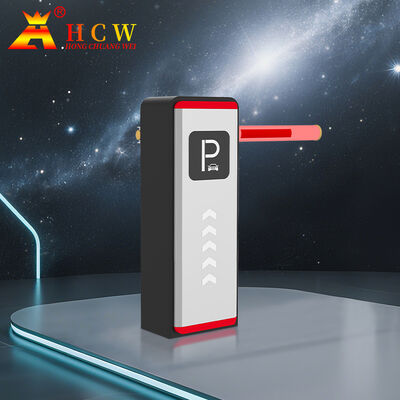

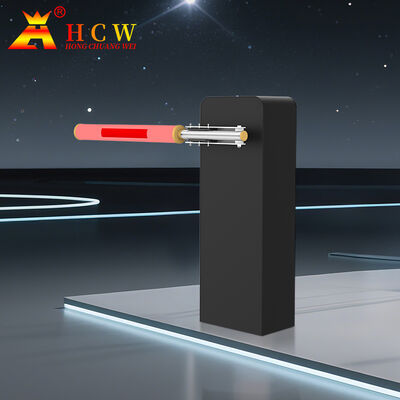

DC Servo Motor 200W Parking Barrier Gate with 1.3~6s Adjustable Lift and Drop Time and Working Noise Under 50db
| Place of Origin | China |
|---|---|
| اسم العلامة التجارية | HCW |
| Model Number | CW252 |
| Minimum Order Quantity | 2 |
| الأسعار | 289 |
| Delivery Time | 7~15 |
| Supply Ability | 1000 |
اتصل بي للحصول على عينات مجانية وكوبونات.
ال WhatsApp:0086 18588475571
ويتشات: 0086 18588475571
سكايب: sales10@aixton.com
إذا كان لديك أي قلق ، فنحن نقدم مساعدة عبر الإنترنت على مدار 24 ساعة.
xتفاصيل المنتج

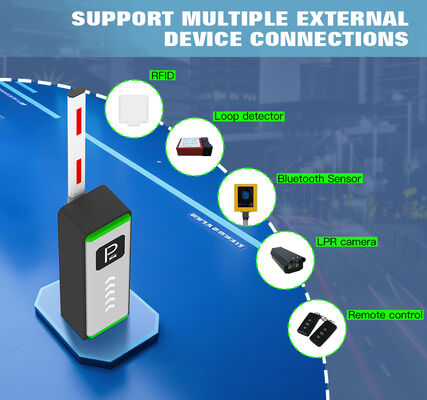

| Supply voltage | AC220V±10%50Hz | Card reading signal | switch value |
|---|---|---|---|

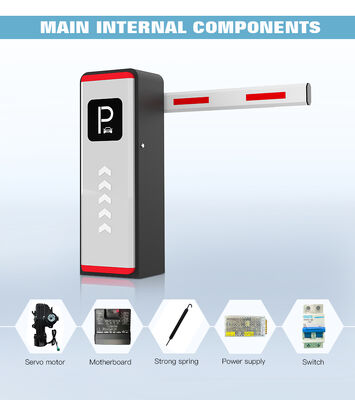

| Motor | DC servo motor 200W | Input voltage | 24V |
| Rated/peak current | 10A/30A | Human-machine interface | 4-digit LED, 4-digit button |
| Hardware protection | over-current protection | Input signal | gate opening, closing, stop |
| Output signal | open position, closed position dry contact | Product size | 380*242*980mm |
| إبراز | DC Servo Motor 200W Parking Barrier Gate,1.3~6s Lift and Drop Time Boom Barrier Gate,Working Noise Under 50db Automatic Barrier Gate,1.3~6s Lift and Drop Time Boom Barrier Gate,Working Noise Under 50db Automatic Barrier Gate |
||
منتوج وصف
HCW Parking Barrier Gate with Anti-Corrosion High Temperature Paint
CW252-Servo Series Barrier Gate

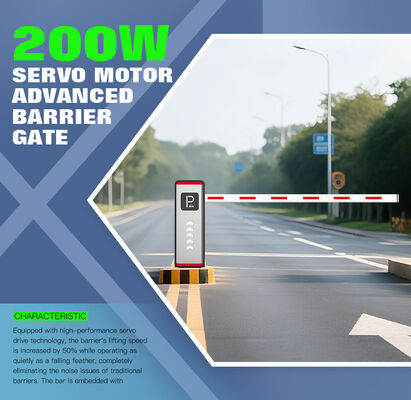

The CW252-Servo Series DC servo barrier gates meet market demands for fast operation and stability. Our seventh-generation design integrates the best features of similar products with advanced digital control technology for intelligent operation management.
Premium Features
- Advanced electrostatic dust and high-temperature paint (180℃~250℃) process for superior corrosion resistance
- Digital control technology for intelligent operation monitoring
- Wireless remote control with manual button operation options
- Integrated design minimizes vibration and improves operational accuracy
- Configurable with multiple anti-smash systems (ground sense, pressure wave, infrared)

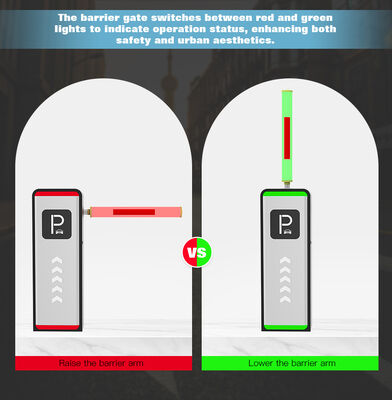

- Traffic indicator lights (red when closed, green when open)
- High-precision control for smooth, reliable operation with fast response times
- Low-noise design (below 50dB) for quiet performance
- Smart anti-crash technology for comprehensive safety
- Energy-efficient and durable construction reduces operational costs
- Modular design simplifies installation and maintenance
Technical Specifications
| Product Name | CW252 |
| Motor | Servo motor |
| Power Supply | 200W |
| Material | Cold Rolled Steel |
| LED Lamp | Red and green |
| Application | Roadway Safety |
| Surface Treatment | Galvanized + Powder Coated |
| Thickness | 1.5mm |
| Size | 380*242*980mm |
| Working Environment | -30℃~+70℃ |

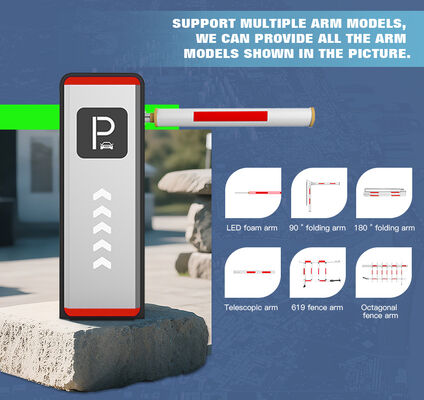

| Available Poles | Straight arm, folding arm, fence boom, foam rod |
| Support Length | Straight arm≤6m, fence boom≤4.5m |
| Foldable Rod Types | 90° and 180° |
| Lift and Drop Time | 1.3~6s (Adjustable) |
| Multiple Protection | Motor overcurrent, overload, short circuit protection, motor failure protection, power reverse connection protection |
